Product Information

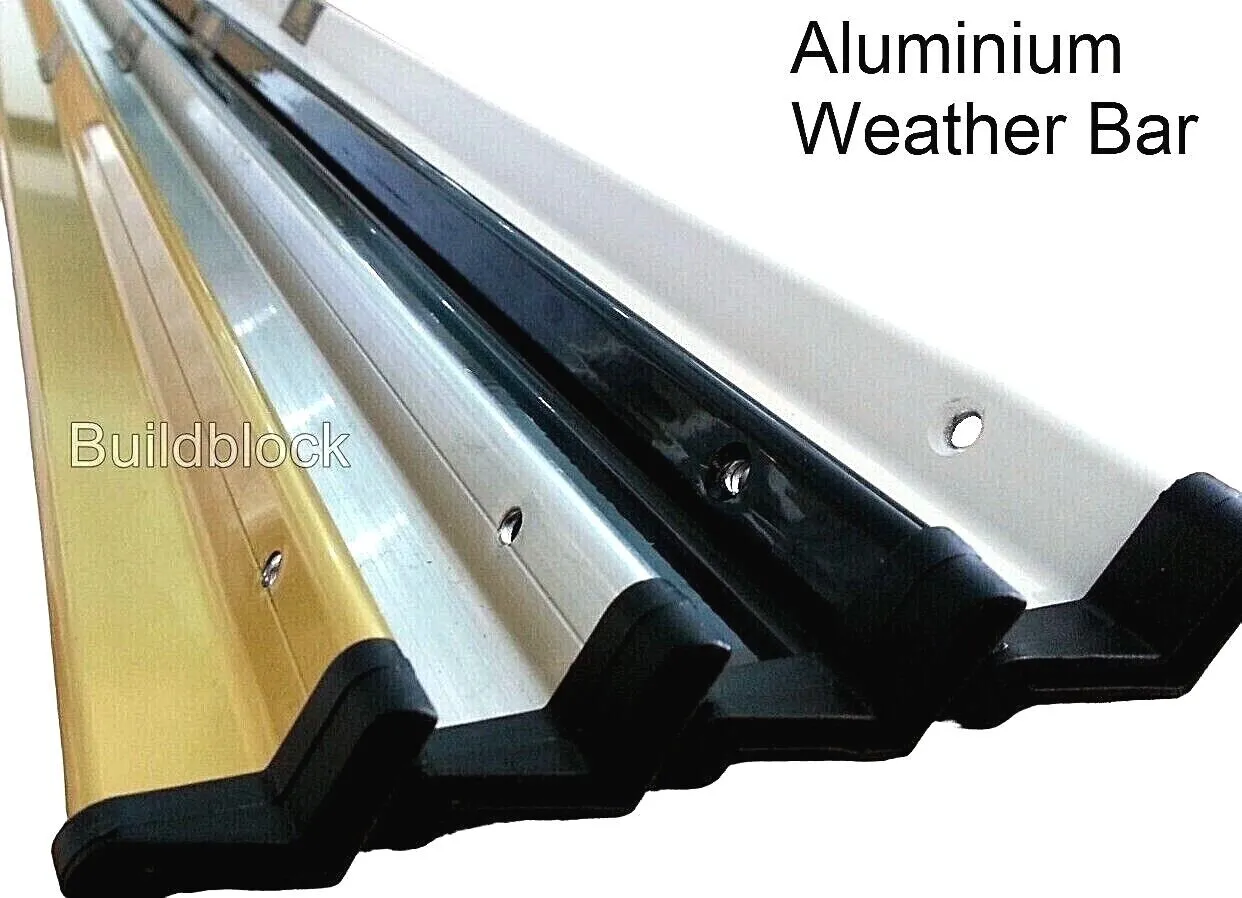

This aluminium drip bar can be fitted to uPVC, wood, aluminium and composite doors.
Very simple to fit.

Measuring & Fitting Instructions:
Simply cut the drip bar to the required length (with a junior hack saw), width of door sash for best results the bar should finish approx. 5 - 10mm from each end of the door frame when closed

Fitting tip:
Place the bar in position, we recommend using a spirit level to get it level then mark the holes using a pencil through the pre-drilled holes in the bar this will allow you to pre-drill a pilot hole if required
or using a battery driver the screws can be fitted without marking or pre-drilling.

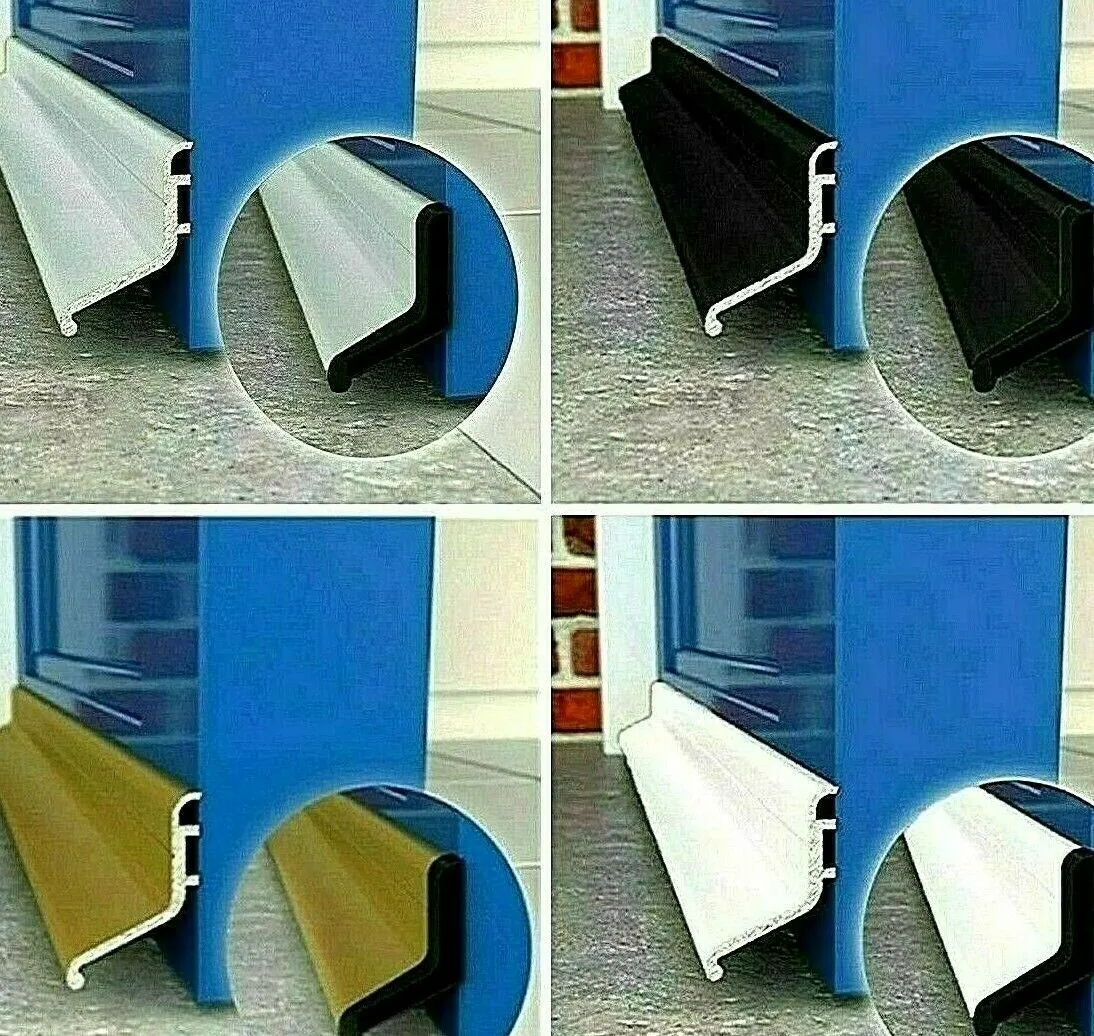

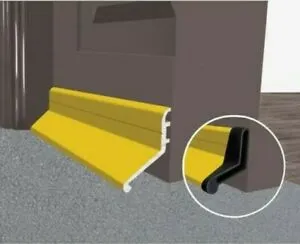

The bottom of the drip bar should be about 15mm above the highest part of the bottom of the threshold that the door seals to when closed.
This allows for any expansion or movement you may experience over the years. The end caps may require a contact adhesive, super glue or silicone and push to fit.

Specification
Length of bar is 914 mm

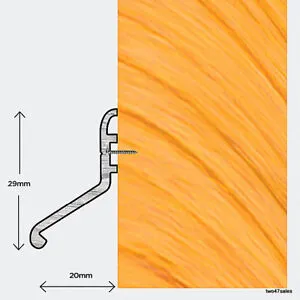

Height of bar is 29 mm
Projection (front to back) of bar 20 mm
Supplied with 3 fixing screws
1 pair of black push to fit end caps

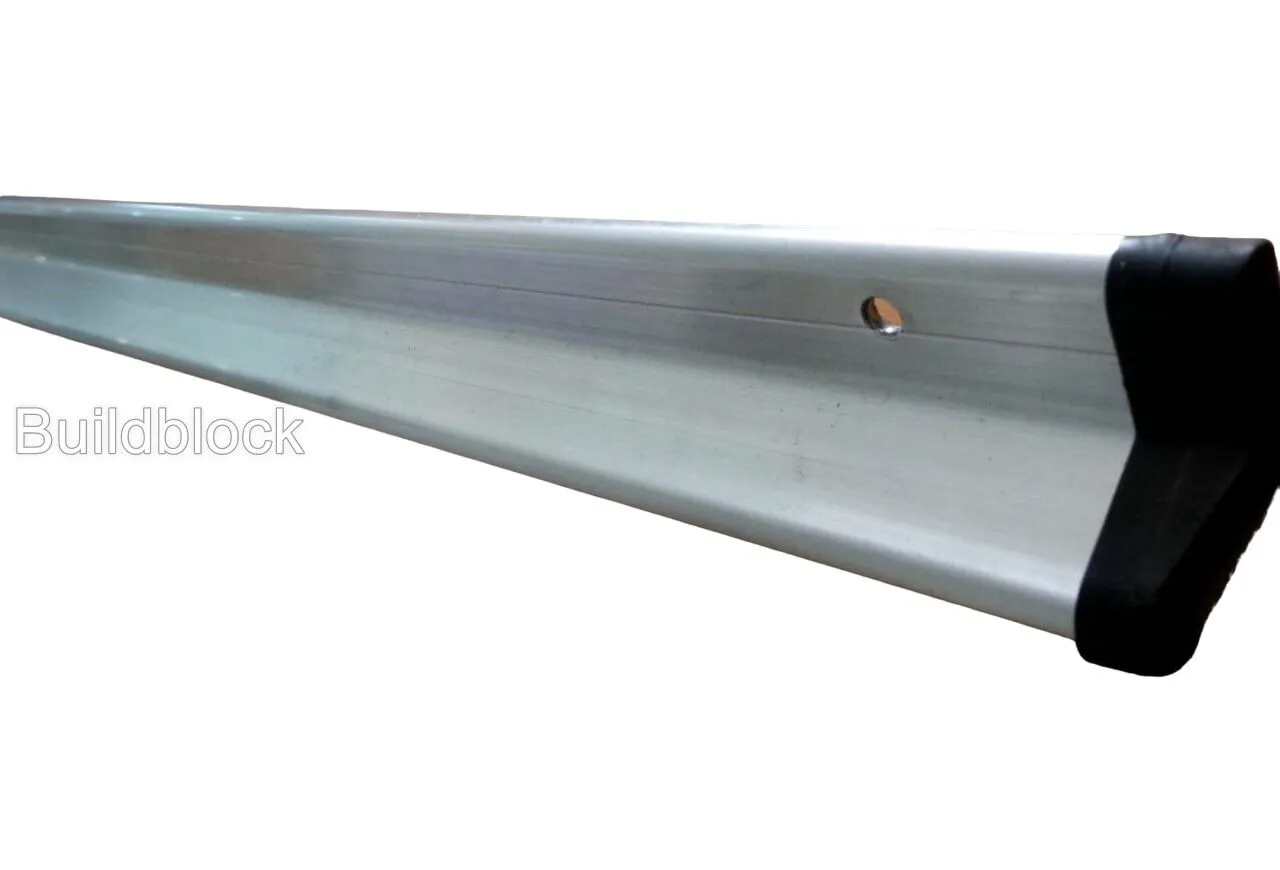

High grade extruded aluminium

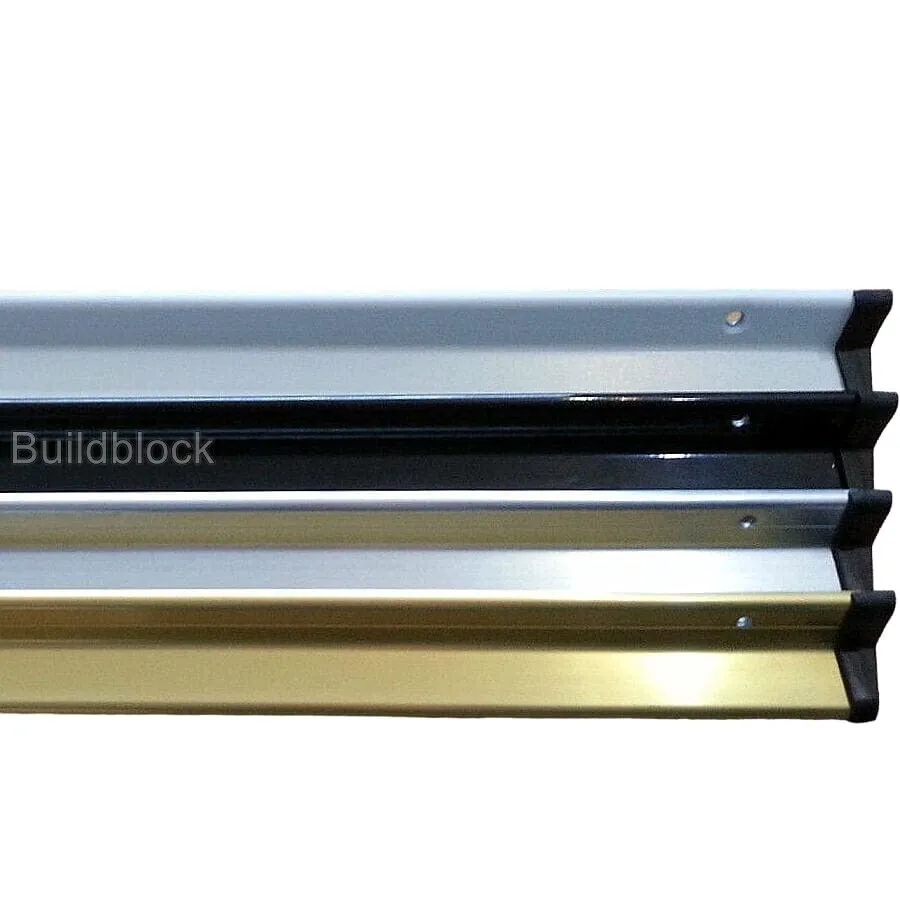

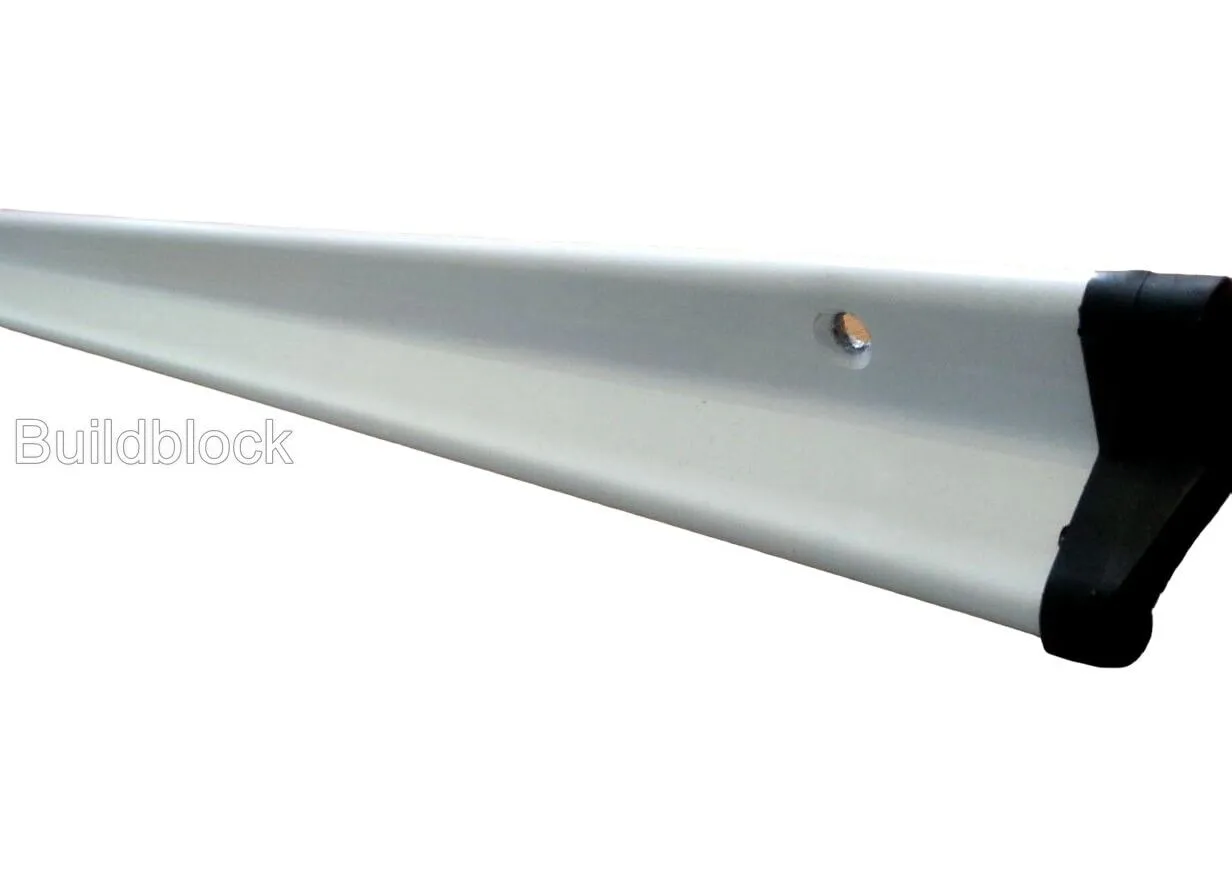

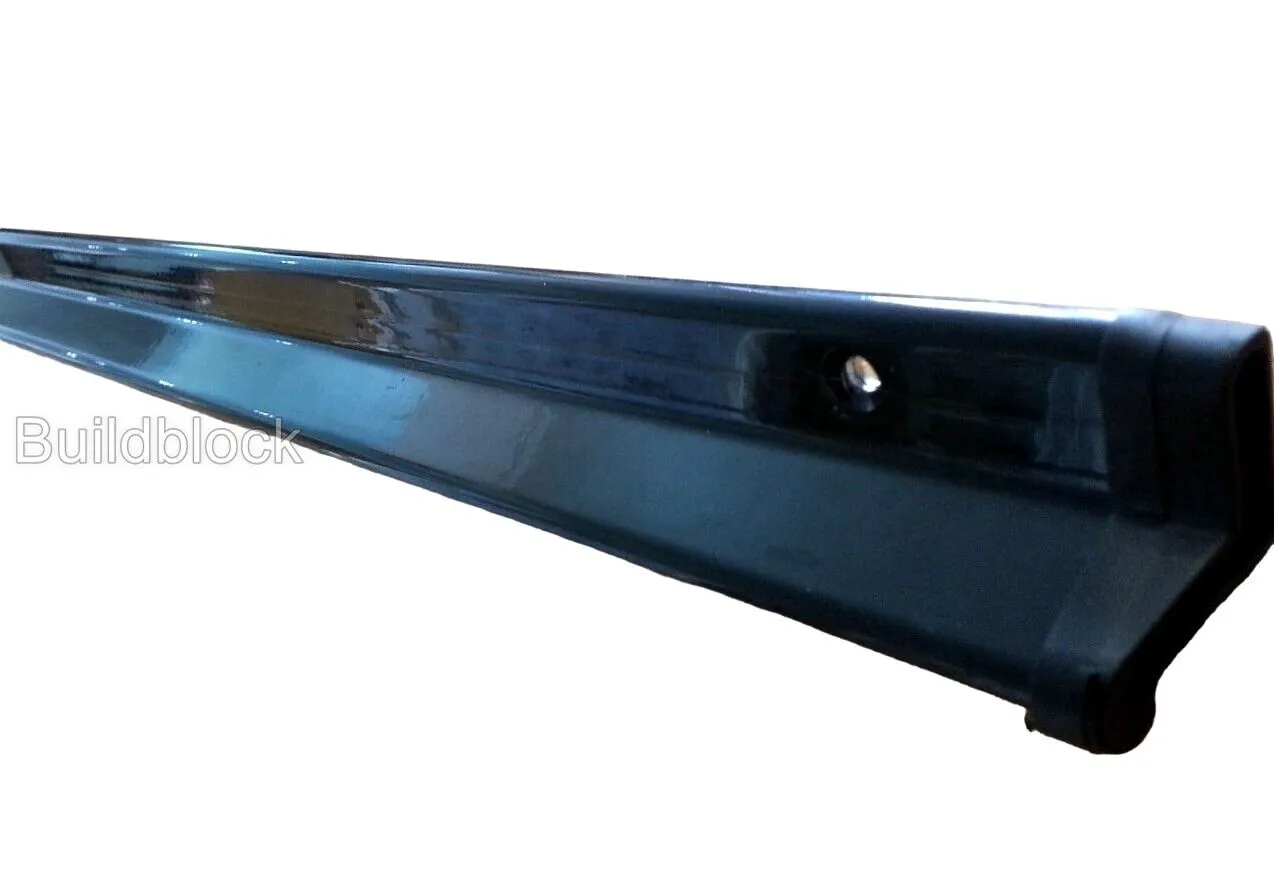

Powder coat finish if white or black
Will not fade in sunlight
Exact product colour displayed may vary depending on setup and quality of the device used to view.

Items Included
1 x Aluminium Weather Rain Deflector Drip Bar c/w 3 x fixing screws & 2 x black end caps
